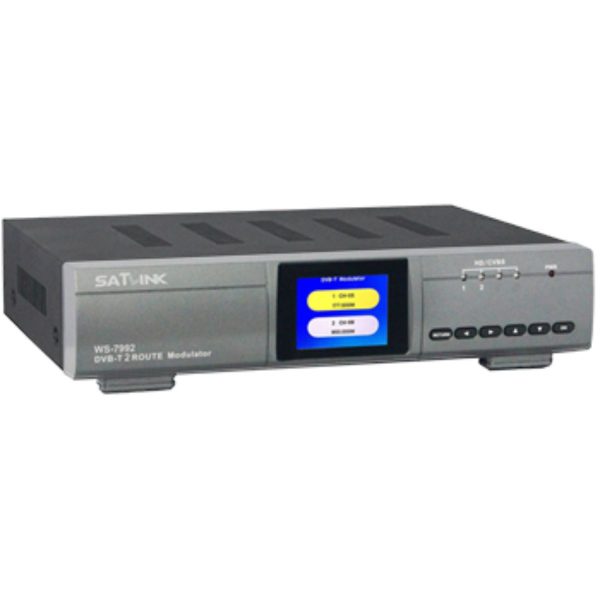

SATLINK WS-7992 – 2 channel HD Modulator RF DVB-T / AV / HDMI

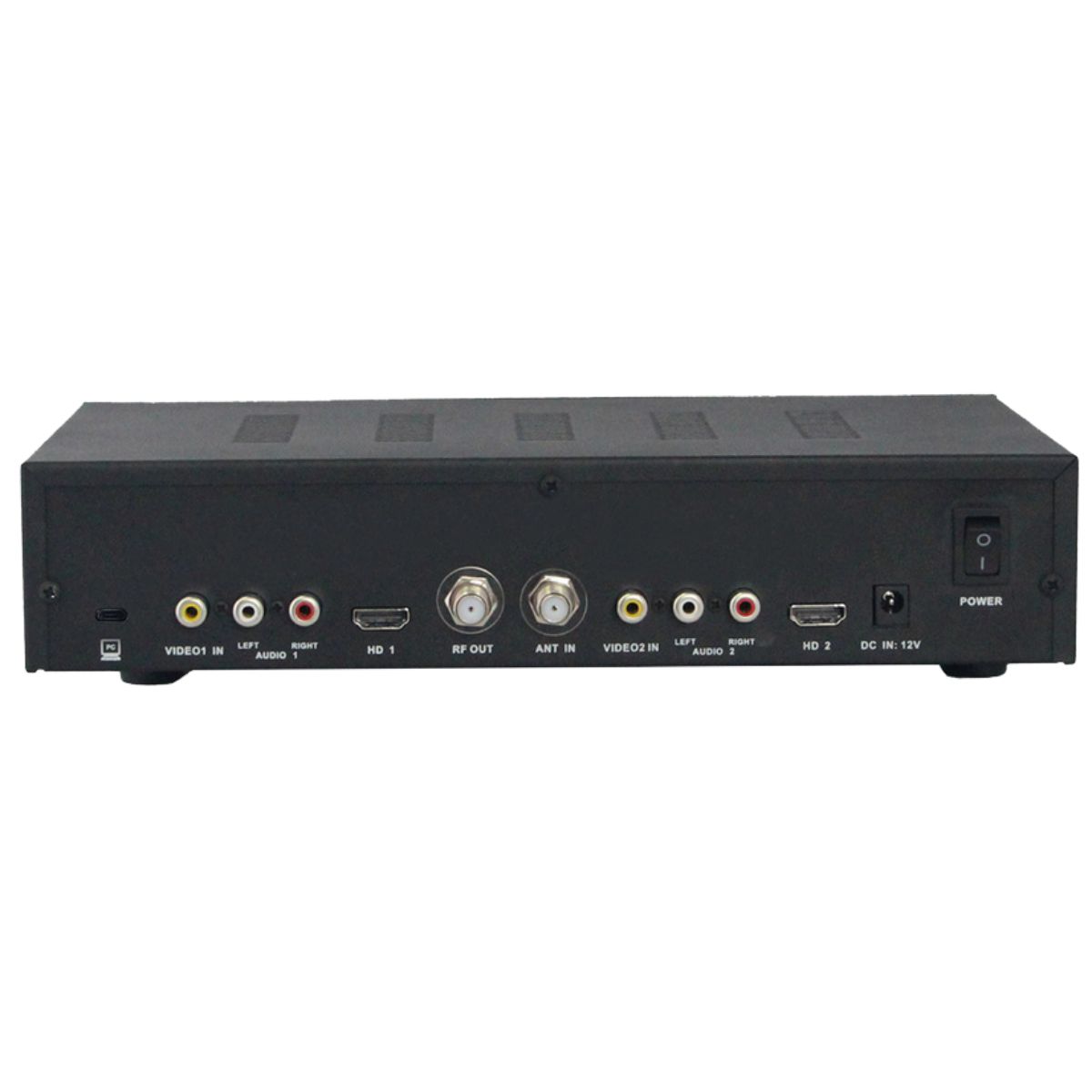

2 HDMI / AV  inputs  modulator that converts  source to a DVB-T over RF channel
• Standard COFDM modulation and H.264 encoding
• Support High-Bandwidth Digital Content Protection / HDCP /
• Bandwidth: 6/7/8MHz
• Frequency range: 50~860MHz
• Continuously adjustable RF signal output level range 70dBuV from 100dBuV,
step 1dBuV
• 2.4-inch color LCD display
• Small size and light weight
• Carriers 2K and 8K
• User friendly setup and control

To convert a HDMI signal to a DVB-T MPEG4 signal only (that means only TV’s with Digital  tuner)

It can be used to add a 2 HDMI or 2 AV channels multiplexed to DVB-T can be feed for example.

HD Signal from Sky HD Box, Virgin, Saorview, Freeview, Freesat, UPC or other models HD TV boxes in a Second room or through out the house on a distribution system.

Mpeg-4 H.264

HD HP@L4  High Profile @ Level 4.0 1920x1080p, 1920x1080i, 1280x720p

RF Out follows encoding settings

Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p

DVB-T Standard

HD Broadcast 1080i

Frequency range:  50to 850 Mhz

Channel Bandwidth : 7/8 Mhz

RF Out Level: Adjustable  from 70dBuV to 100dBuV

Impedance : 75 Ohm  ( 50 opt. )

MER: Professional-Grade >45 dB

Spectrum Shoulders: 55 dB for  perfect adjacent-channel operations

Out Filter: -70 dB of Harmonic  and spurious suppression

Encoding Delay 600-800 milliseconds

DVB-T modulations: QPSK, 16QAM, 64QAM

FFT: 2K / 8K mode  Guard Intervals: 1/4, 1/8, 1/16, 1/32

Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8

It gives a DVB-T output which is sufficient to feed a number of DVB-T capable TVs (via a splitter).

HD modulator is easy to install and operate.

Provides RF Loop Through 50MHZ~2400MHZ

It is possible to set the output frequency.
