Πολυδιακόπτες

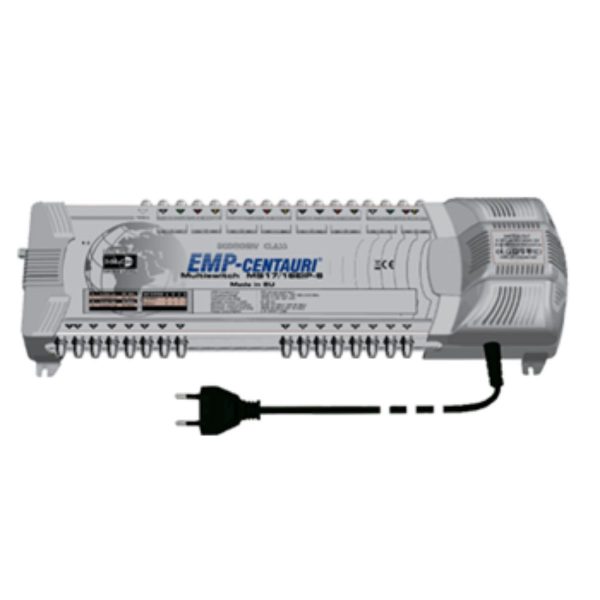

EMP-Centauri Multiswitch MS17/16EIP-6 V9
Διαθεσιμότητα:
Άμεσα διαθέσιμο
€209.90 Με Φ.Π.Α
Άμεσα διαθέσιμο
ΣύγκρισηSpecifications:
| Parameter | Condition | Value |
| Frequency range | LNB inputs | 950-2150 MHz |
| Terr. input | 5-862 MHz | |
| Outputs | 5-2150 MHz | |
| Control | DiSEqC 1.0 (2.0) commands | |
| Insertion loss | Sat. | 0 dB avg |
| Terr. | 21 dB avg | |
| Sat. inputs isolation | Between V/H polarisations | 20 dB min |
| Between low/high bands | 20 dB min | |
| Between sat. systems | 25 dB min | |
| Maximum input level* | Sat. | 90 dBµV avg |
| Terr. | 100 dBµV avg | |
| Maximum output level* | Sat. | 90 dBµV avg |
| Terr. | 79 dBµV avg | |
| Power consumption | From each receiver | 75 mA (18V) |
| From internal power supply | 4.5 W + LNB | |
| Dimensions (w,d,h) | 47.0 x 15.2 x 8.7 cm (power cord length 130 cm) |
|
| Temperature range | -25 ~ +60 °C |
*Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
| Βάρος | 2.000 kg |
|---|---|
| MPN | |
| brands |
Based on 0 reviews
Be the first to review “EMP-Centauri Multiswitch MS17/16EIP-6 V9”
Σχετικά προϊόντα
-
Πολυδιακόπτες
EMP Πολυδιακοπτης 9×26 Multiswitch MS9/26EIP-6
2-satellites (8 polarities) standalone multiswitches with an integrated power supply are designed for the distribution of terrestrial and satellite signals from 2 satellite positions for up to 16 subscribers (26 subscribers in Profi Class). Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.
Main features of Economy Class multiswitches:
-
- compatible with Quattro/Quad LNB
- active or passive terrestrial input depending on product type
- integrated power supply
- 9in/16out standalone multiswitch for distribution of 8 SAT IF signals including passive terrestrial for up to 26 users
SKU: 00432 -
-
