Product description:
5in/6out standalone multiswitch for distribution terrestrial and satellite signals from 1 satellite position (4 polarities) to 6 users.

Multiswitch passes DC power from receivers to input SAT 2 (hor/low).
Use only with Quattro LNB!

Additional DC socket allows to insert power from the external supply (not included) to the inputs TERR and SAT 3 (vert/high) and supply antenna preamplifier or support power to LNB.

External supply is not to be used if terrestrial input of the multiswitch is DC-shorted (eg. by balun)!

2 SAT reception system can be assembled using 2 pcs of this multiswitch (stacked into single unit) and 6 pcs of plug-in DiSEqC modules S2/1PCT-1

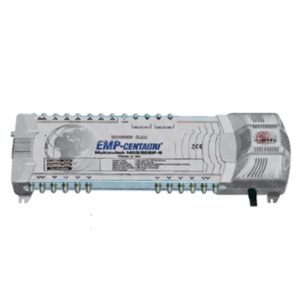

2-satellites (8 polarities) standalone multiswitches with an integrated power supply are designed for the distribution of terrestrial and satellite signals from 2 satellite positions for up to 16 subscribers (26 subscribers in Profi Class). Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.

Main features of Economy Class multiswitches:

• • compatible with Quattro/Quad LNB
  • active or passive terrestrial input depending on product type
  • integrated power supply
  • 9in/16out standalone multiswitch for distribution of 8 SAT IF signals including passive terrestrial for up to 20 users
